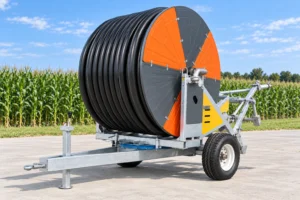

JP series reference images. Confirm the selected configuration.
JP SERIES

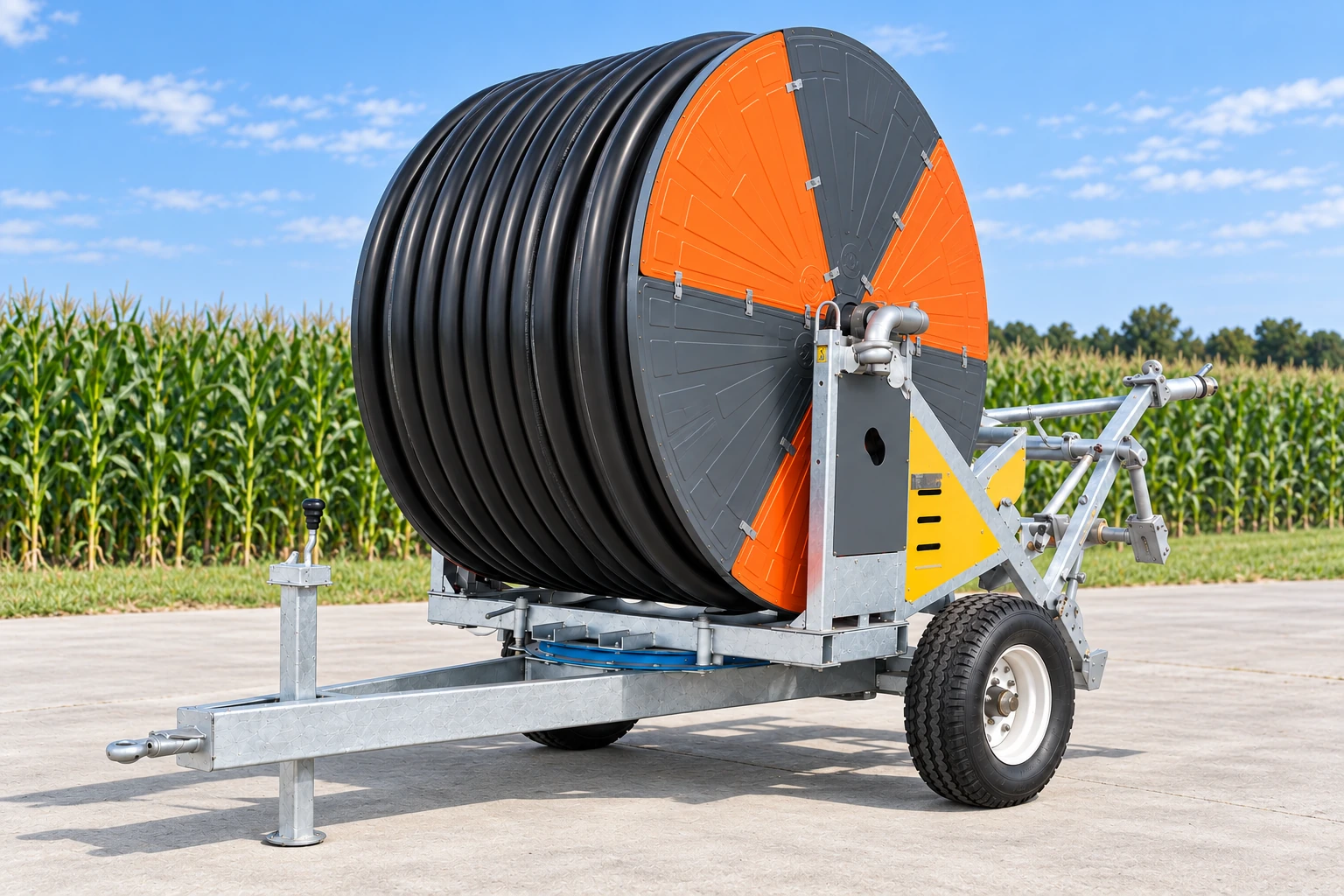

JP90-300 Hose Reel Irrigator
JP90-300 hose reel irrigator with 90 mm PE hose, 300 m hose length and water turbine reel rewind drive.
- Rewind control: Valve + Gearbox Shifting.
- Matching pump flow: 40-50(m³/h).
- Matching pump head: 78-117(m).
- Matching pump power: 15-22(kW).
Hose diameter
Hose length
Reel rewind drive
Share your field dimensions and pump data.
Controlled Rewinding
for Field Irrigation
JP90-300 Hose Reel Irrigator
The JP90-300 Hose Reel Irrigator is a water-turbine-driven, self-propelled machine. Pressurized water enters the water turbine, and its kinetic energy drives the turbine to rotate. This rotation is transmitted through a multi-functional gearbox to turn the reel, which pulls the PE hose and enables the sprinkler cart to retract at a uniform speed. At the same time, pressurized water flows through the PE hose to the sprinkler, delivering normal spraying performance.
Agricultural applications
The single sprinkler used on conventional hose reel irrigation machines produces a relatively high flow rate and application intensity, making it more susceptible to wind drift. As a result, it is primarily suited for large-scale field crop irrigation.
JP series boom option
A 26 m boom is available as a JP series configuration option for field crops and cash crops. When paired with a suitable large-capacity machine, the supplied series information states a spraying width of up to 34 m. The boom offers low operating pressure, low irrigation intensity, fine atomization and reduced sensitivity to wind. Confirm compatibility and supply scope for the selected model before ordering.
JP90-300 Technical Specifications
| Item | Design Value |
|---|---|
| Model | JP90-300 |
| Overall Dimensions (L×W×H) | 5000×2000×3000(mm) |
| Reel Rewind Drive Mode | Water Turbine |
| Reel Rewind Speed Control Mode | Valve + Gearbox Shifting |
| Reel Horizontal Swivel Angle | 0-270(°) |
| Hose Material | PE |
| Hose Outer Diameter | φ90(mm) |
| Hose Wall Thickness | 8.2(mm) |
| Hose Length | 300(m) |
| Sprinkler Cart Type | Gantry Type |
| Sprinkler Cart Drive Mode | Towed Type |
| Sprinkler Cart Wheel Track | 1330-2700(mm) |
| Sprinkler Device Type | Rotary Rain Gun |
| Number of Sprinkler Devices | 1 |
| Rated Flow Rate of Matching Pump | 40-50(m³/h) |
| Rated Head of Matching Pump | 78-117(m) |
| Rated Power of Matching Pump | 15-22(kW) |
Photos show the shared JP series appearance and component examples. Drive configuration and dimensions vary by model. Refer to the model-specific specifications above.
Model selection support
Share your field size, crop, water source, pump flow and pump head with SECOSETH to confirm the appropriate configuration.
- Rotary rain gun on a towed cart
