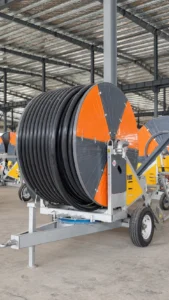

JP series reference images. Confirm the selected configuration.
JP SERIES

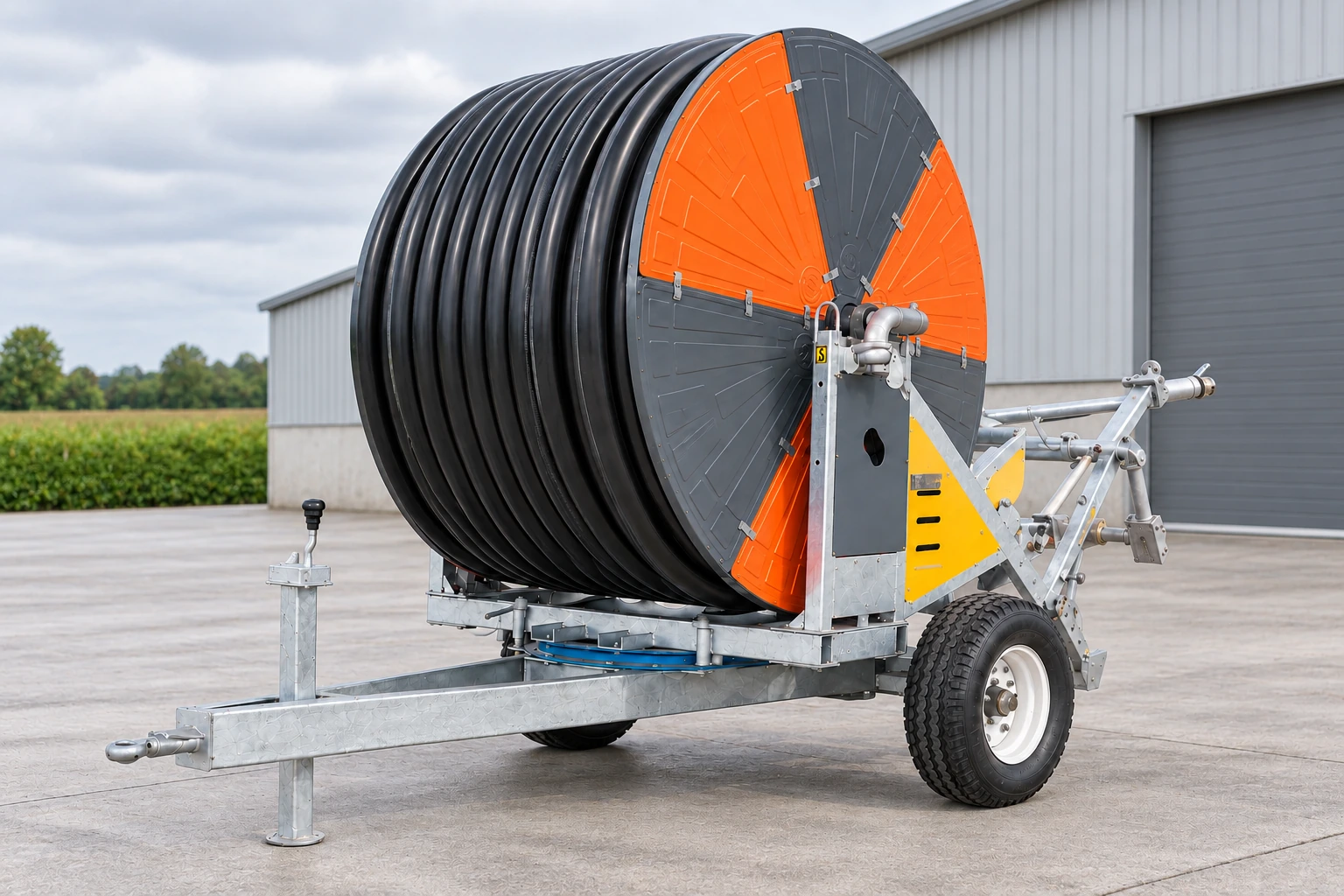

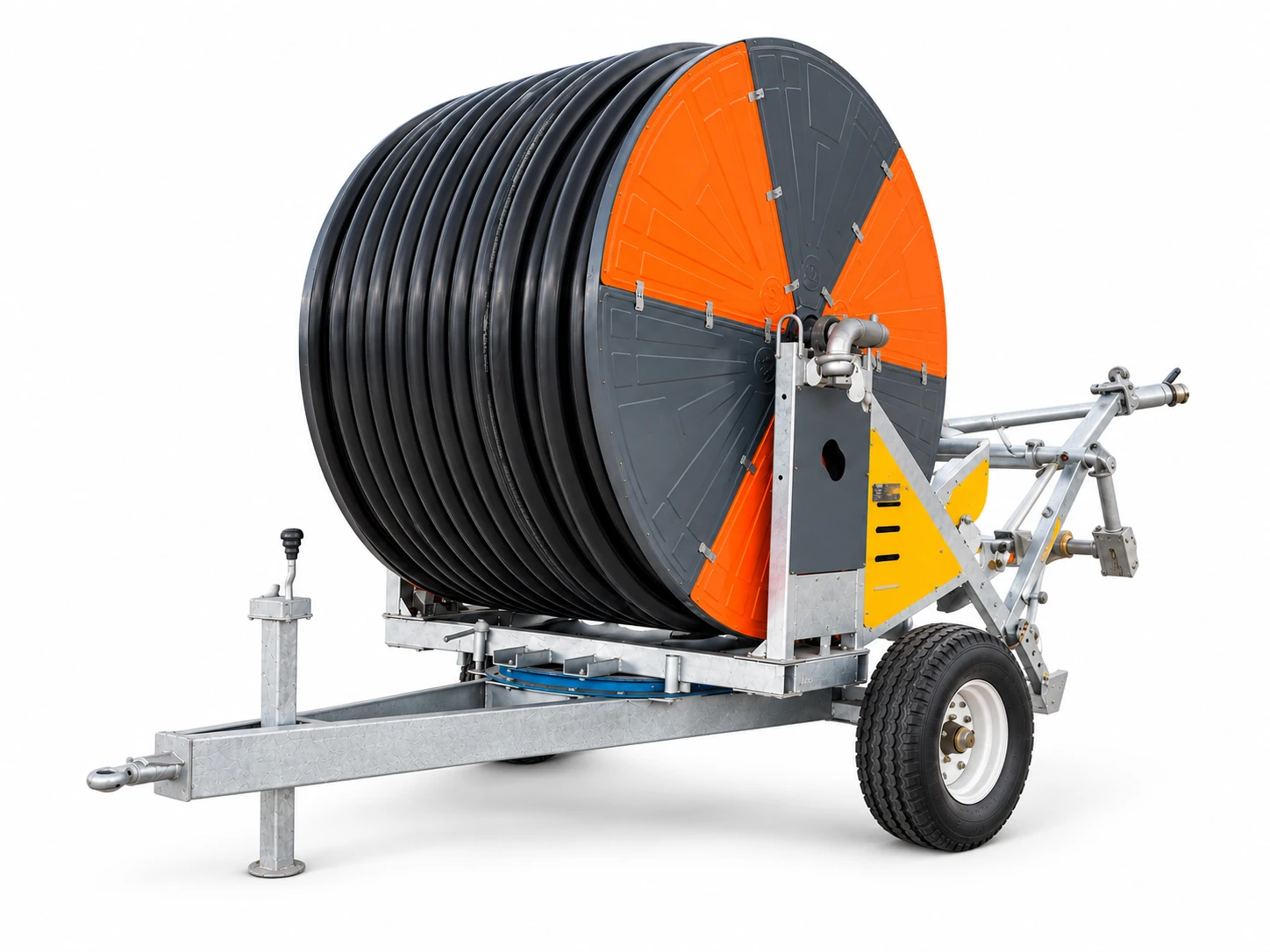

JP75-300DK Hose Reel Irrigator
JP75-300DK hose reel irrigator with 75 mm PE hose, 300 m hose length and motor reel rewind drive.
- Rewind control: Motor Speed Control + Gearbox Shifting.
- Matching pump flow: 15-37.8(m³/h).
- Matching pump head: 50-130(m).
- Matching pump power: 11-15(kW).
Hose diameter
Hose length
Reel rewind drive
Share your field dimensions and pump data.
Controlled Rewinding
for Field Irrigation
JP75-300DK Hose Reel Irrigator
The JP75-300DK is a motor-driven hose reel irrigator with a 75 mm PE hose and a hose length of 300 m. Motor speed control and gearbox shifting regulate reel rewinding, drawing in the PE hose and sprinkler cart. Pressurized water flows through the PE hose to the rotary rain gun for irrigation.
Agricultural applications
The single sprinkler used on conventional hose reel irrigation machines produces a relatively high flow rate and application intensity, making it more susceptible to wind drift. As a result, it is primarily suited for large-scale field crop irrigation.
JP series boom option
A 26 m boom is available as a JP series configuration option for field crops and cash crops. When paired with a suitable large-capacity machine, the supplied series information states a spraying width of up to 34 m. The boom offers low operating pressure, low irrigation intensity, fine atomization and reduced sensitivity to wind. Confirm compatibility and supply scope for the selected model before ordering.
JP75-300DK Technical Specifications
| Item | Design Value |
|---|---|
| Model | JP75-300DK |
| Overall Dimensions (L×W×H) | 4500×1900×2570(mm) |
| Reel Rewind Drive Mode | Motor Drive |
| Reel Rewind Speed Control Mode | Motor Speed Control + Gearbox Shifting |
| Reel Horizontal Swivel Angle | 0-270(°) |
| Hose Material | PE |
| Hose Outer Diameter | φ75(mm) |
| Hose Wall Thickness | 6.3(mm) |
| Hose Length | 300(m) |
| Sprinkler Cart Type | Gantry Type |
| Sprinkler Cart Drive Mode | Towed Type |
| Sprinkler Cart Wheel Track | 1390-2600(mm) |
| Sprinkler Device Type | Rotary Rain Gun |
| Number of Sprinkler Devices | 1 |
| Rated Flow Rate of Matching Pump | 15-37.8(m³/h) |
| Rated Head of Matching Pump | 50-130(m) |
| Rated Power of Matching Pump | 11-15(kW) |

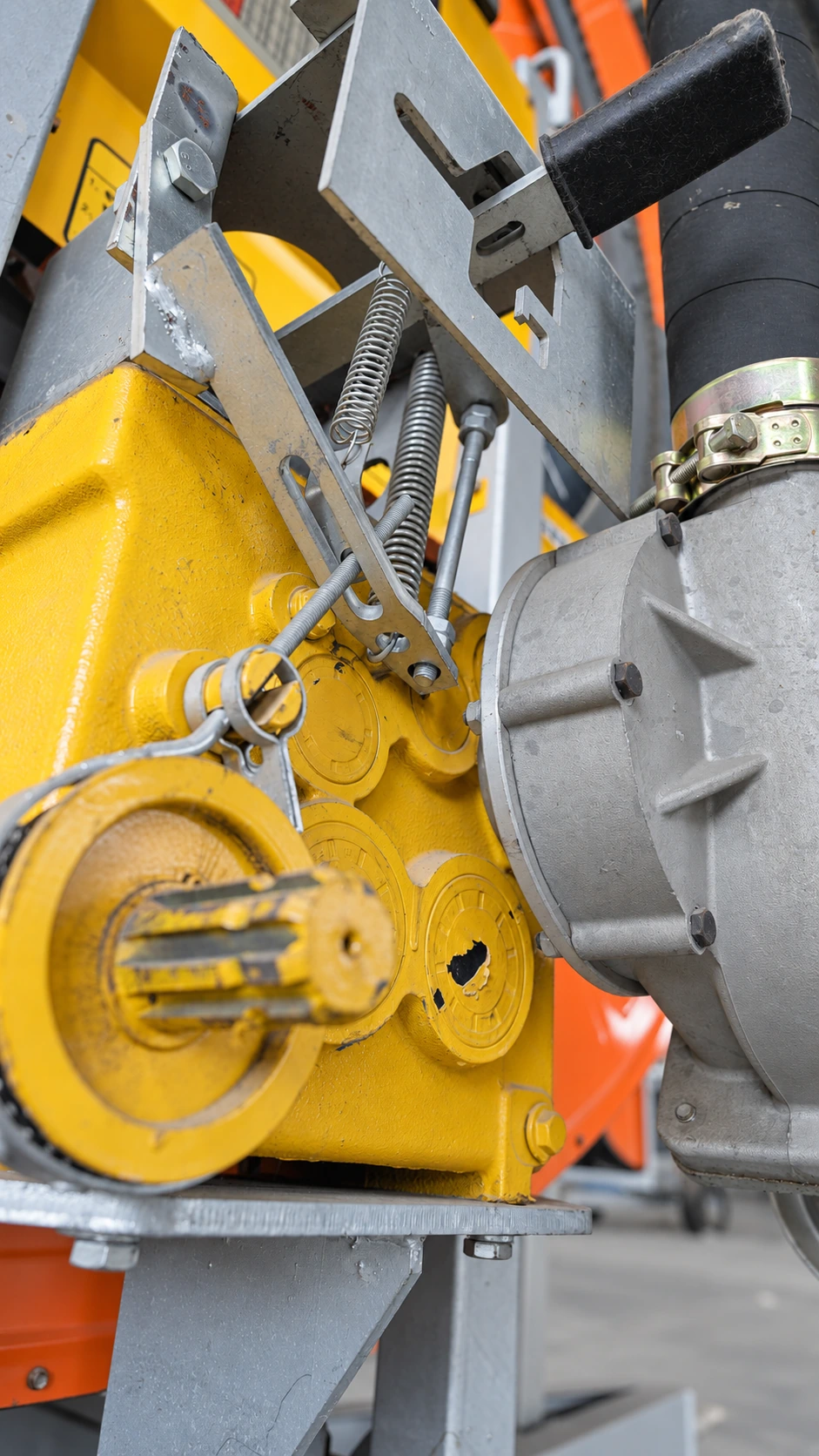

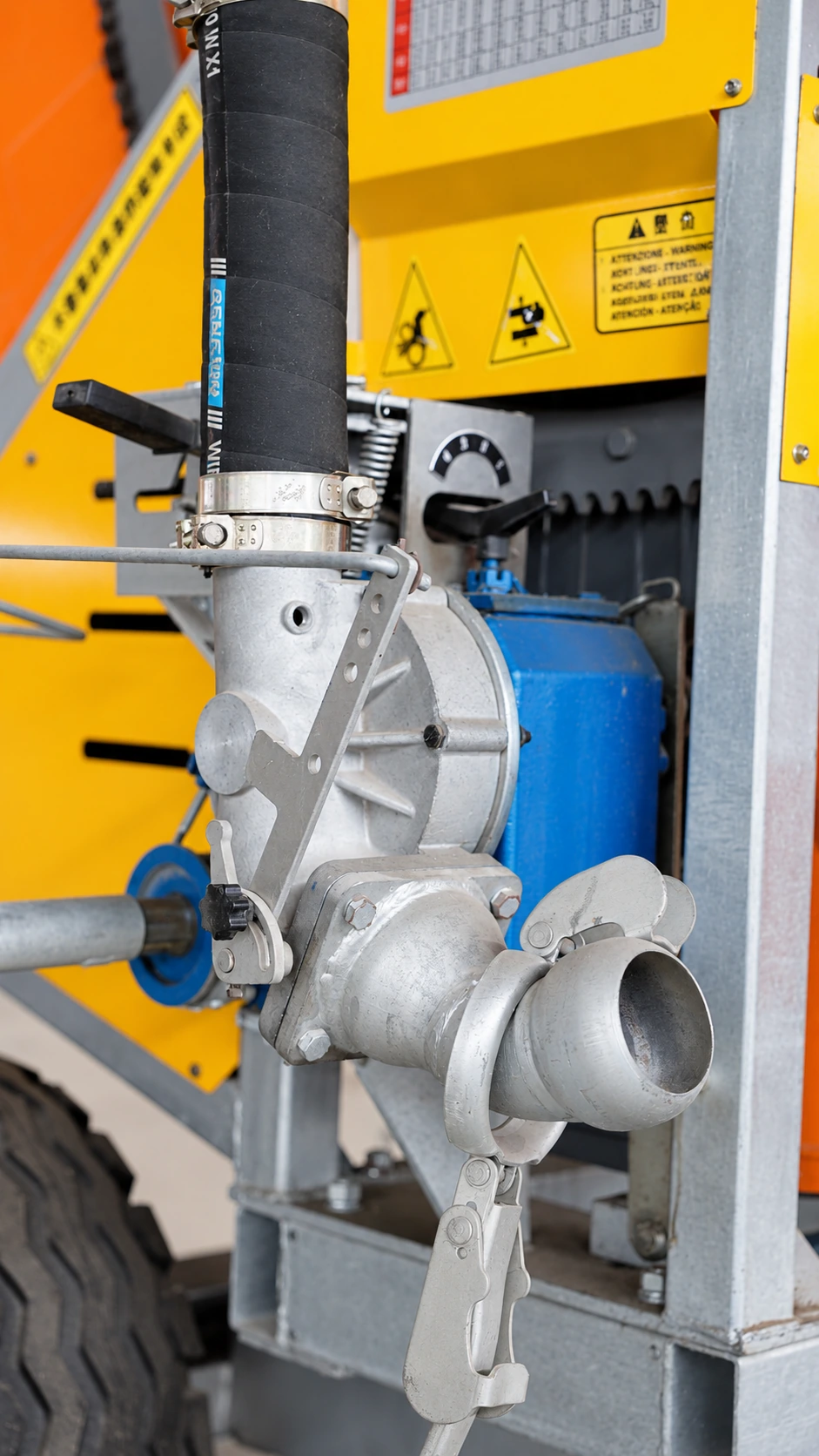

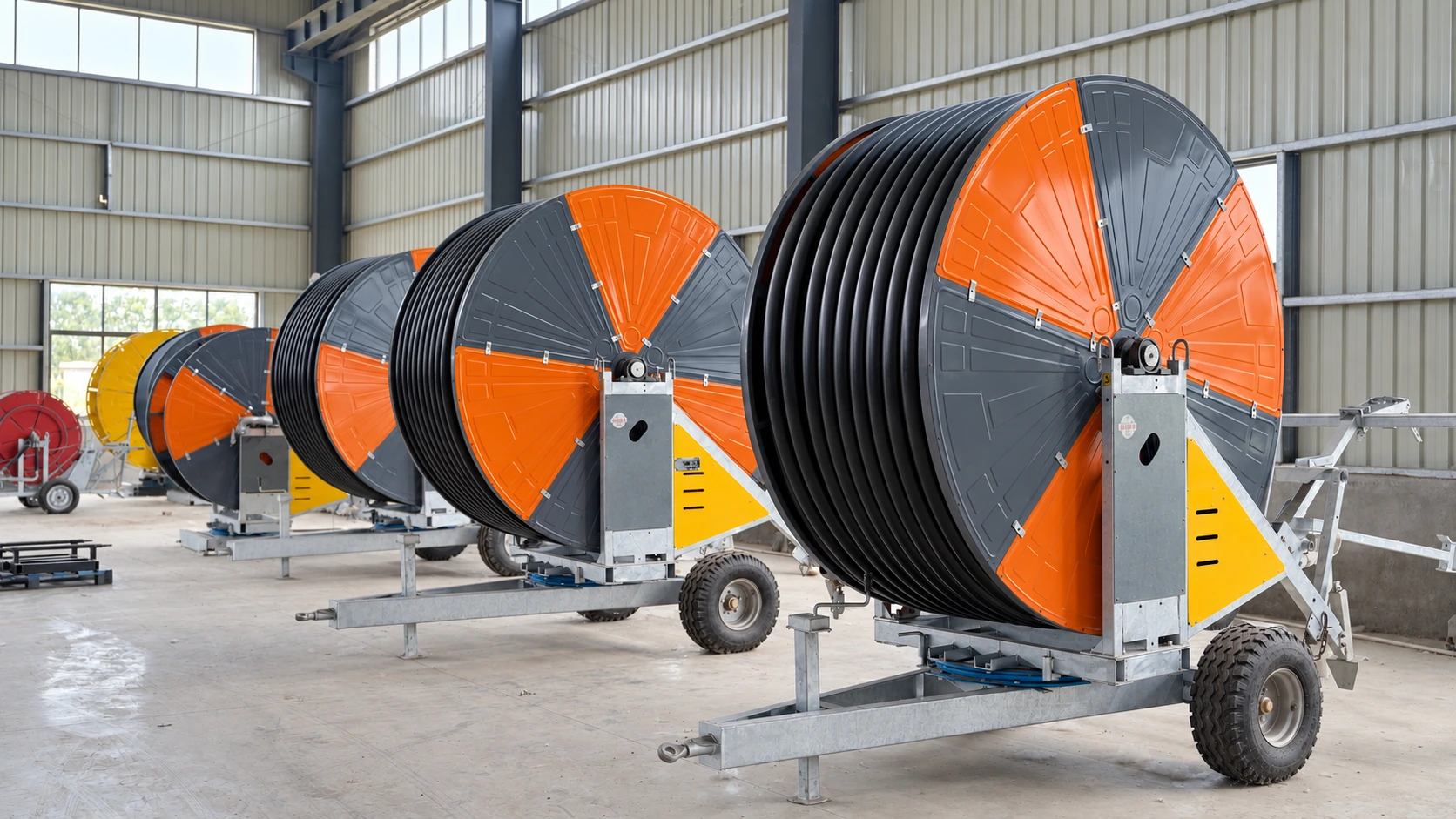

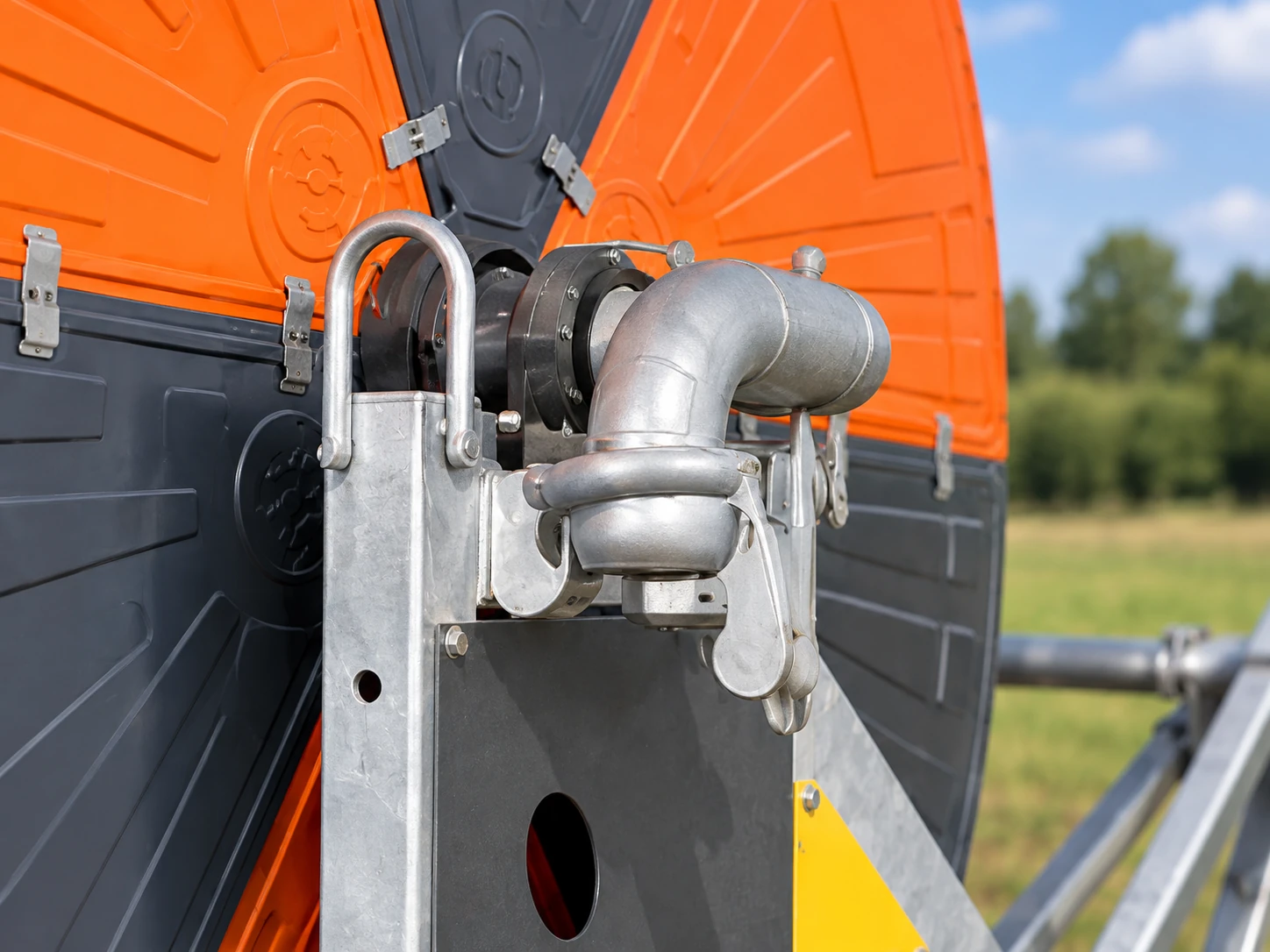

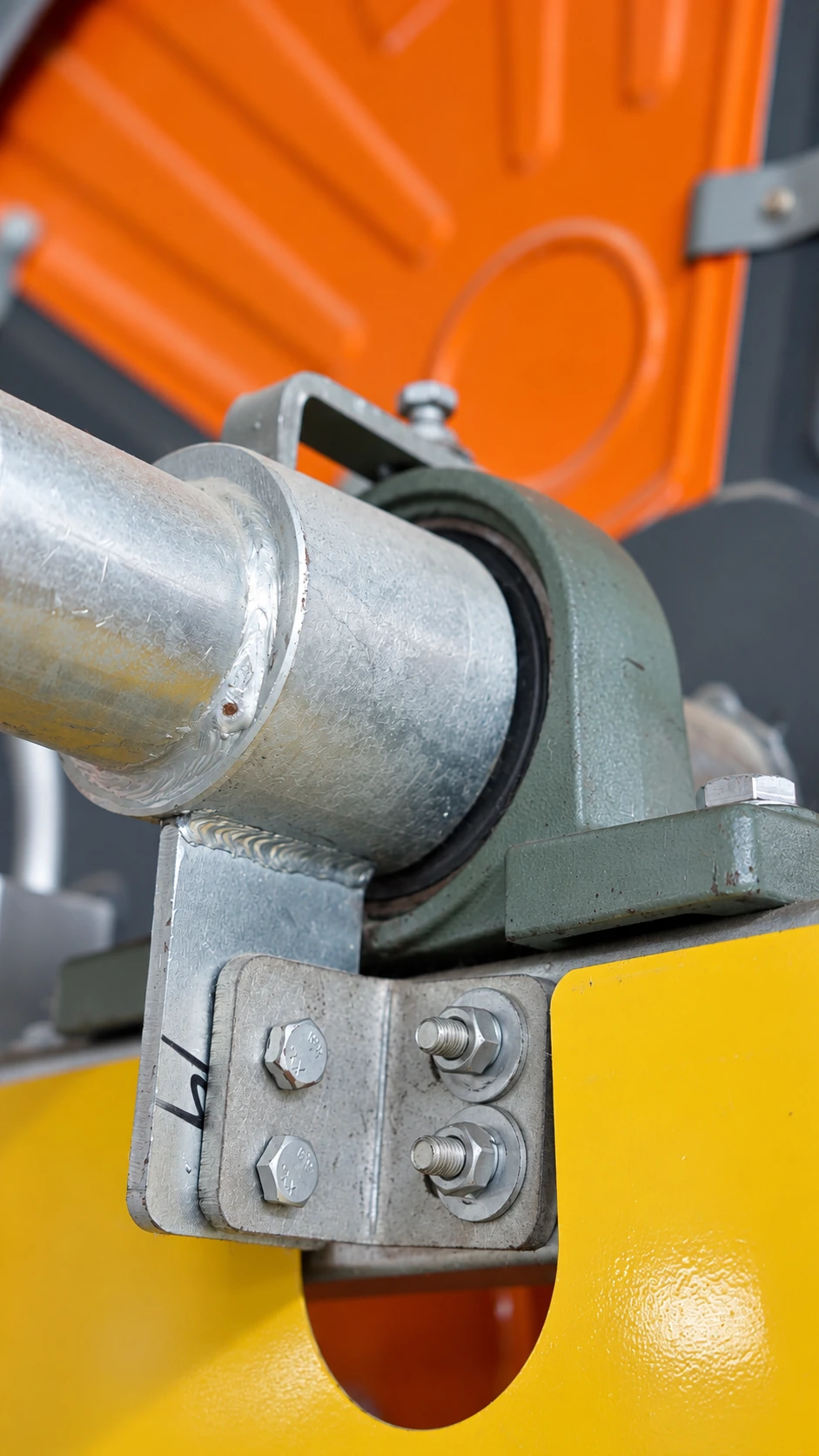

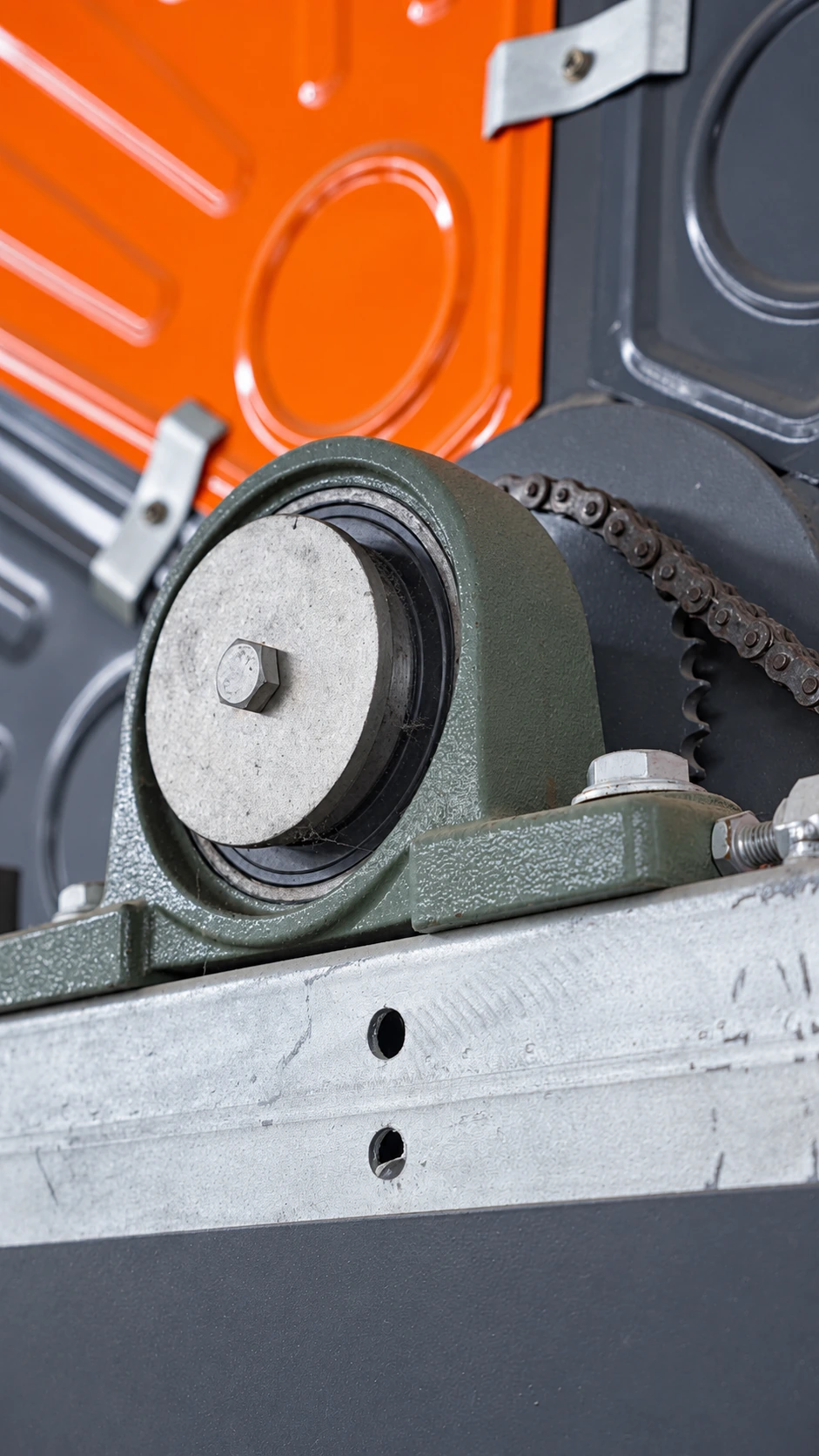

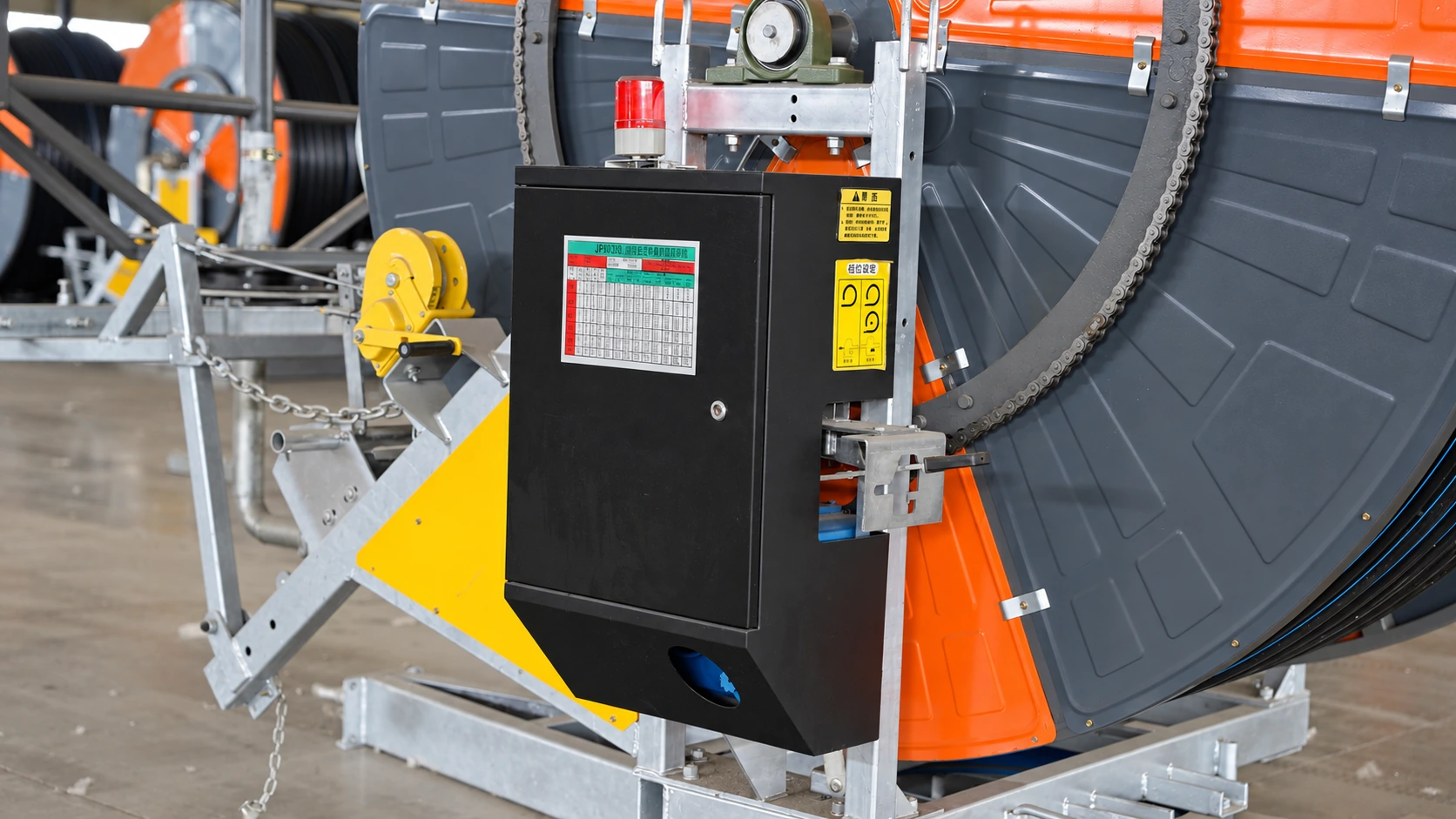

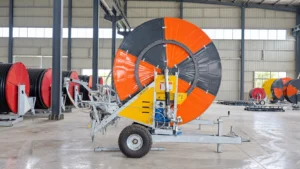

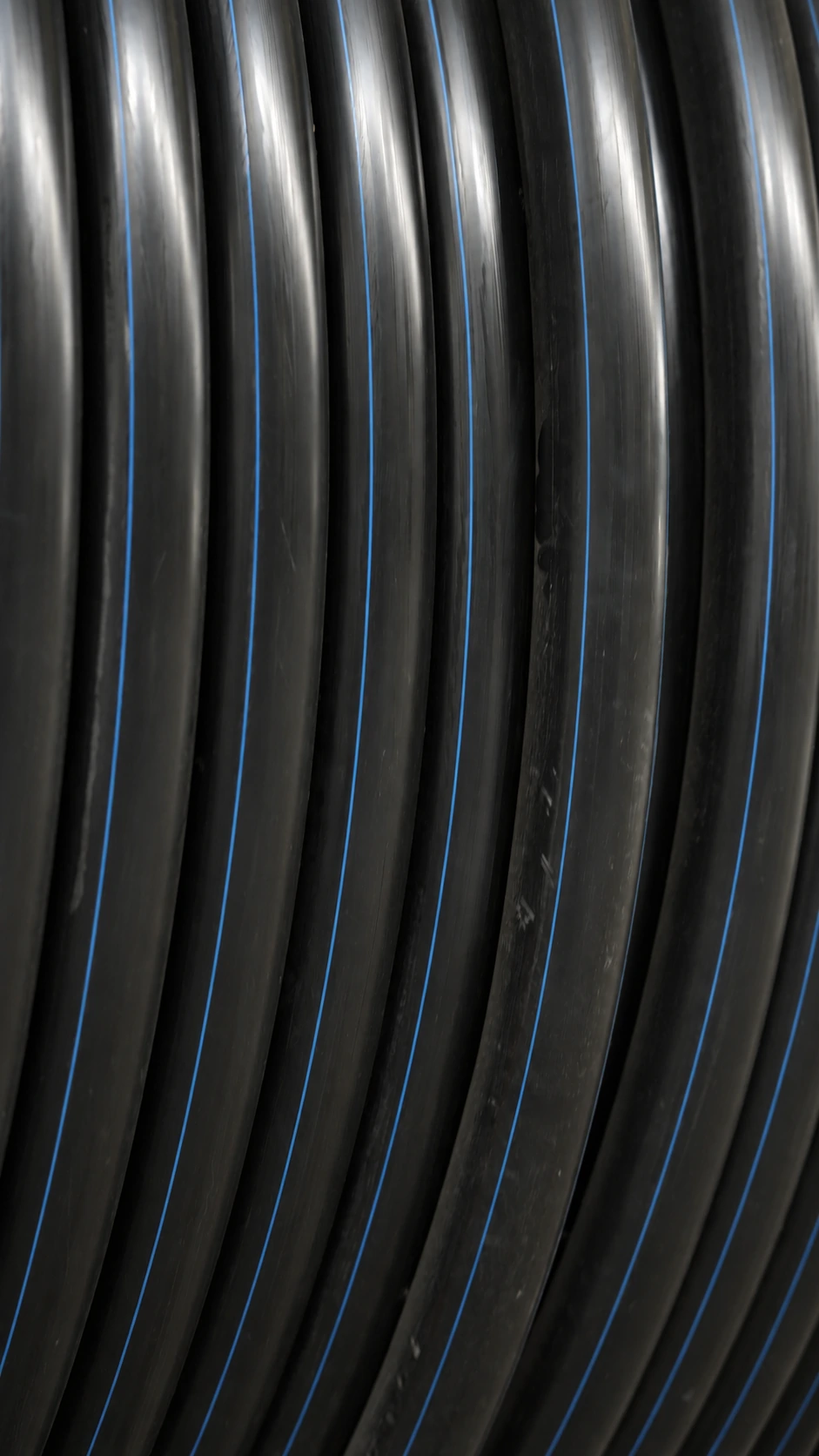

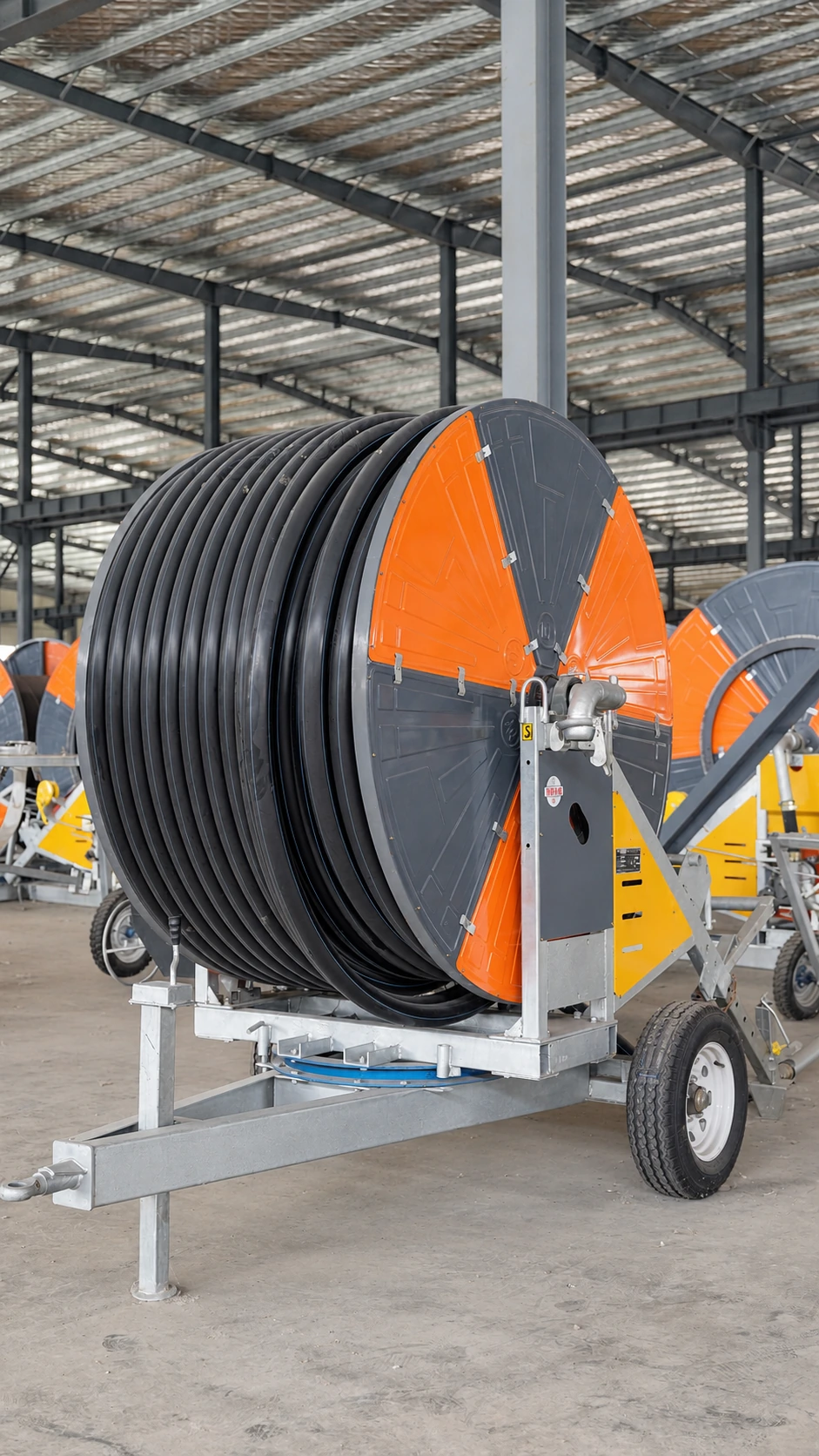

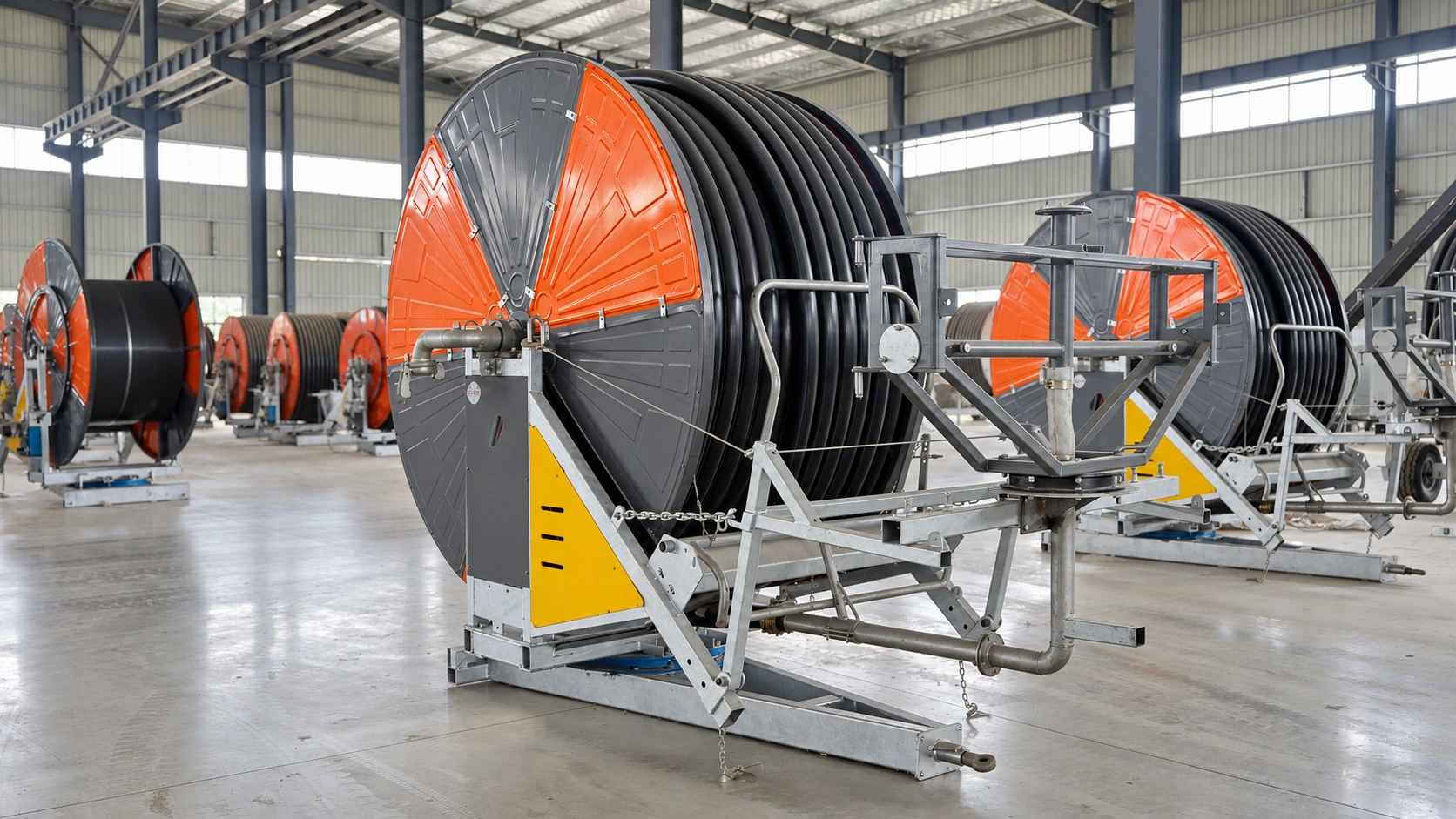

Photos show the shared JP series appearance and component examples. Drive configuration and dimensions vary by model. Refer to the model-specific specifications above.
Model selection support
Share your field size, crop, water source, pump flow and pump head with SECOSETH to confirm the appropriate configuration.
